POER Wireless thermostat receiver PTR10

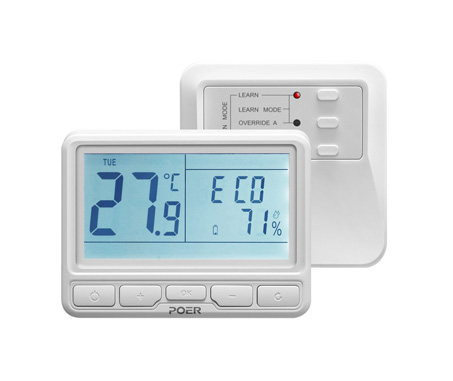

Connect to thermostat PTC10 and gateway PTG10


Strong signal      Two relays       433MHz and 868MHz optional

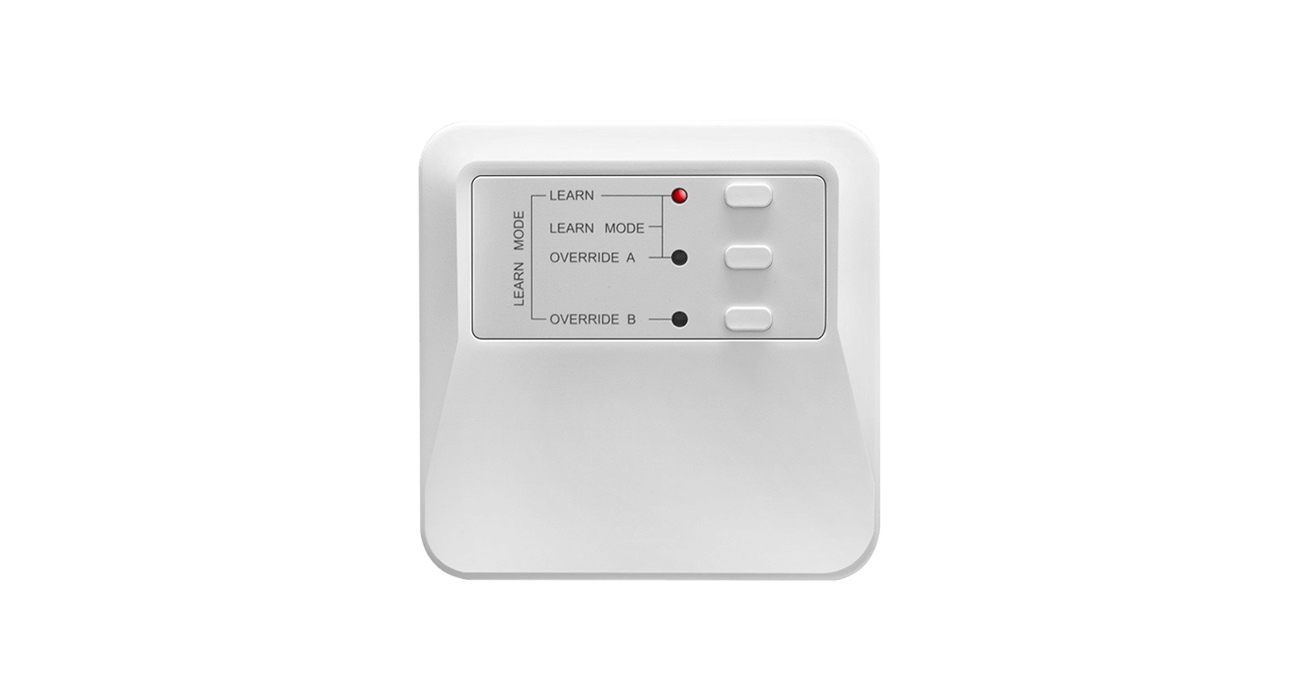

POER Receiver PTR10
Connect to gas boiler

PTR10 has two sets of voltage free contacts. It could be connected to gas boiler

and other equipment which need voltage free relays.

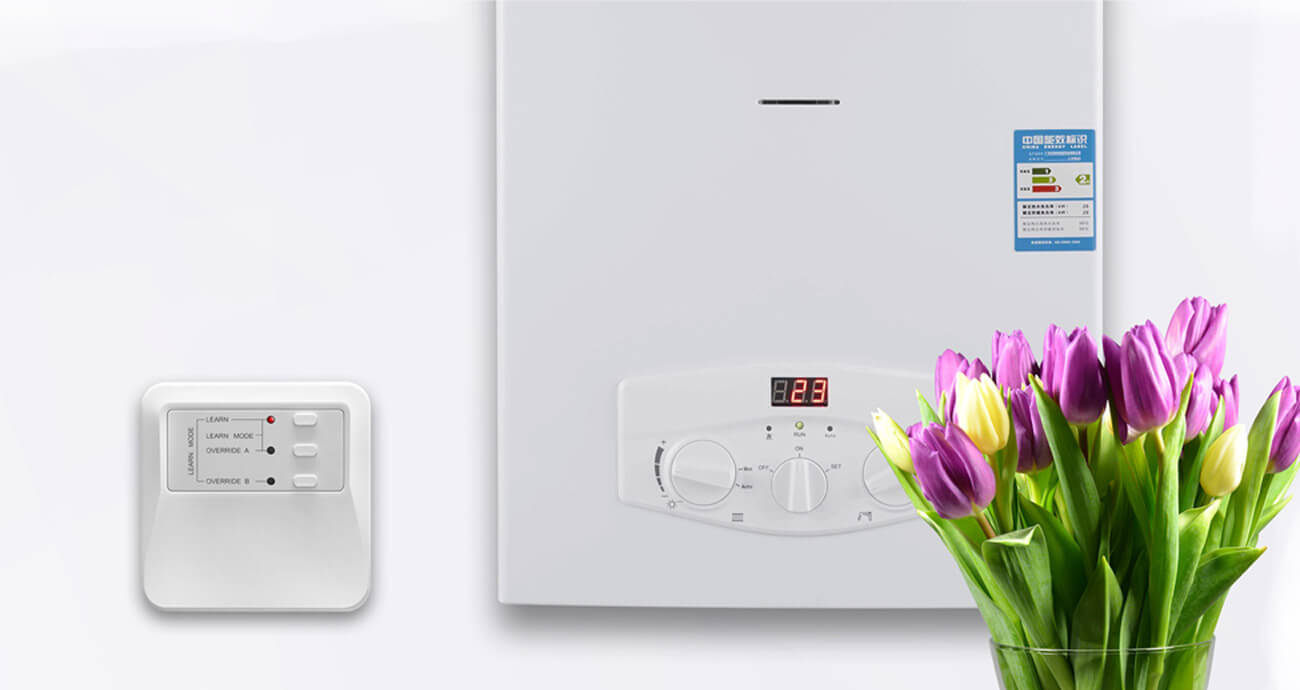

Connect to Gas Boiler
Advantage

Install receiver PTR10

Install receiver PTR10
Wiring Diagram
Wiring Diagram
Basic Paramerters
wireless receiver
Operating Temperature0 to 50°C
Transmitting frequency868 MHz(433 MHz-PTR10-433),Bidirectional
Communication Range(open space)100 meters
Power<2W
Power supply100VAC~240VAC, 50Hz
Switch rating240VAC 50Hz, 24A resistive,16A inductive
Switch TypeSPST relay
Dimensions (HxWxD)100x 85 x 32mm
IP classIP30
StandardCE
Weight150g


Basic Paramerters
